Appendix
Protocol Handler
It is possible to install RealmJoin packages using an URL-link.
The correct format for this command consists of the realmjoin: call, the subcommand install and the package ID, e.g. generic-google-chrome.
The complete link therefore would be written as:
realmjoin:install:generic-google-chrome.
The package has to be assigned for the user in the RealmJoin back-end.
NoGraph Option
To install RealmJoin without Graph API consent, the registry key
can be set to 1.
It is also possible to set this key during the installation of RealmJoin as a argument for the msi:
msiexec /i "RealmJoin.msi" NOGRAPH=1.
3rd Party NuGet Packages
PowerShell Modules
PSIni
Used to read and write ini files from within Chocolatey or craft packages
Source & License: https://www.powershellgallery.com/packages/PsIni
Project Home: http://lipkau.github.io/PsIni/
Use: Deploy as package through RealmJoin (or add dependency in nuspec, e.g.: <dependency id="PSini" version="[2.0,3.0)" />)
Import: Import-Module "$env:ProgramData\chocolatey\lib\PSini\PsIni.psm1"
RealmJoin Workflow
The RealmJoin workflow describes the detailed process after RealmJoin is deployed via Intune MDM Channel (single MSI software deployment) to the client.
To understand how RealmJoin detects and authenticates the device and the related user we must investigate the Azure AD/Intune device enrollment process first:
After the user successfully authenticates against Azure AD by providing a username, password, and MFA, the Azure AD Device Registration Service generates a key pair for the device certificate.
Generates a Certificate Signing Request (CSR) using the key pair. Signs CSR data with private key plus public key in the request.
Generates a second key pair that will be used to bind SSO tokens physically to the device when authenticating to Azure AD later on. This key is typically called storage/transport key (Kstk) and is derived from Storage Root Key (SRK) of the device Trusted Platform Module (TPM). The way the binding of the SSO token to the device is achieved by storing into the TPM a corresponding symmetric session key (encrypted to Kstk) issued along with the SSO token upon authentication to Azure AD.
Send a device registration request to Azure DRS passing along the ID token, the generated CSR and the public portion of the Kstk along with its attestation data.
Once the request comes to Azure DRS the service will validate the token, will create a corresponding device object in Azure AD and will generate and send back a certificate to the device. The AP,I in turn, will install the certificate into the LocalMachine\mystore
To check the related cert please use the following command:
dir Cert:\LocalMachine\My | where { $_.Issuer -match "CN=MS-Organization-Access" } | fl
The related Azure AD Device ID can be checked here:
Having this information available out of the related certificate, RealmJoin is now able to start the provisioning process without the need for a dedicated user authentication/interaction. RealmJoin knows about the Azure AD Device ID out of the above described device certificate information and can start all processes running within the system context for this device and the corresponding user account.
Initial run
As RealmJoin is aware of the Azure AD Device ID and the related user account, it will immediately start (after the regular OOBE process finished) to apply the device checks and install the users' software within the system context of the device. After completion of this initial run, RealmJoin will trigger a device restart.
After a device restart, RealmJoin will prompt the user for an authentication confirmation - no credentials like password needed here! Now RealmJoin can proceed with all user-based device and software configuration settings.
RealmJoin will ask the user for its Second Identity - this feature is only available when a Legacy Active Directory Authentication Provider should be involved in the users' network resource scope by providing NTML tokens for an on-prem file or print services.
The build-in RealmJoin "Security Requirements" assessment does some pre-checks:
System Update Status: not enforced
Full-Disk Encryption: enforced
Firewall Configuration: enforced
Anti-Virus Configuration: not enforced
[!NOTE] These checks are customizable (enforce/not enforce) and will be replaced by the Intune Device Health Check in the future.
During the initial run of RealmJoin, the BitLocker Drive Encryption will be enabled and enforced. User interactivity is not necessary. The related BitLocker recovery key is escrowed into Azure AD.
[!NOTE] To find this key is required, please use this URL (admin only)
Initial Start before RJ v4.15

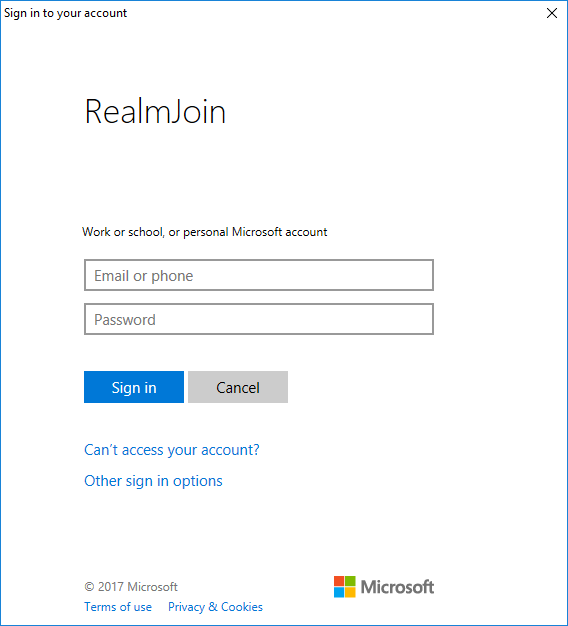

When RealmJoin is enrolled and started for the first time, it asks for the user identity and then calls to the cloud service for a policy.
RealmJoin Security Requirement assessment does some pre-checks (Encryption, Patch Level, Firewall, Anti-Virus, etc. – this is optional and can be replaced in parts by Intune-Health-Check). In the last step, all mandatory software will be installed (black screen installation). During this installation, any interaction with the client is suppressed.
If no error occurs during deployment, RealmJoin is ready to use.
Client usage
After being successfully installed, RealmJoin is automatically started on the user login and is permanently active in the background. It is represented with an ID card icon. Clicking on the icon opens up the RealmJoin client menu. It contains basic information in the lower and several links in the upper part. The selector Software Packages opens a second context menu with all the software packages that are allocated to the user.
If user wishes to install any of the listed software, he/she is only required to select the package to start the installation.
The installation mode depends on the packages selected: If those are only user-mode packages, they are installed immediately. In case of a higher permission level, RealmJoin starts a service (realmjoinservice.exe) and installs the packages with the SYSTEM user account.
